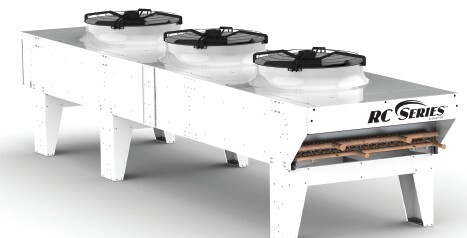

Remote outdoor condenser

Desert Aire designs its Remote Condensers to complement Desert Aire dehumidification and indoor climate control systems demanding large amounts of commercial thermal transfer solutions.

RCE and RCF Series Remote Condensers are featured in Standard and Quiet models for application flexibility and performance. Vertical airflow models fulfill most application needs; horizontal airflow models are available upon request.

Desert Aire’s remote condensers are designed with a commitment to excellence that will provide you with years of reliable service.

The RCD range of condensers is sized up to 14.6 MBH/°F of heat rejection. The EC fans are controlled using PID to maintain a condenser pressure set point. Control panels are rated for 65 kA SCCR when power is supplied with class J fuses.

Desert Aire’s RC8 range of condensers is sized up to 34.8 MBH/°F of heat rejection. Swept fan blades are designed as part of the direct drive motor. The RC8 series has fully enclosed motor lead raceways to protect wiring. Control panels are rated for 10kA SCCR when power is supplied with class J fuses.

 The RCD range of condensers is sized up to 14.6 MBH/°F of heat rejection. The EC fans are controlled using PID to maintain a condenser pressure set point. Control panels are rated for 65 kA SCCR when power is supplied with class J fuses.

STANDARD FEATURES

• Galvannealed steel cabinet (RDC Series is powder coated)
• Terminal block for power connection

OPTIONAL FEATURES
• Coated coil
• Vertical orientation with horizontal airflow
• Non-fused or fused disconnect
